ASH WIN ENGINEERS, having made its modest beginning in 1992 at Ahmedabad, India. Which is now undisputed player in manufacturing and export of State of the art full range of Rotomolding machines, Microfine Pulvering system, Compounding Extrusion Lines, Highspeed Mixers, Scrap Granulators, Vibratory Screens, Rotational Moulds of Mild steel/ Stainless steel and also other related Plastics auxiliary equipments. The promoters are visionary engineers who are possessing strong technical as well as management back ground with focus in manufacturing of Plastic Rotational Molding Plants and Extrusion processing plants.

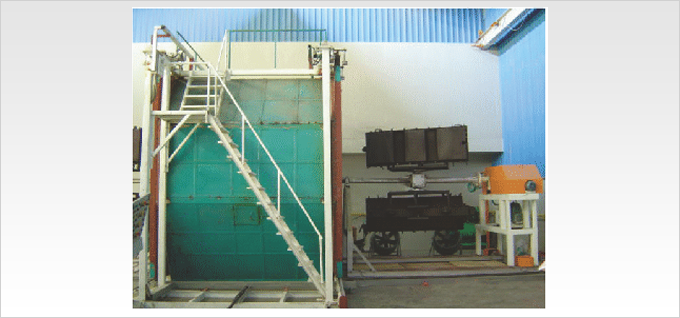

Multi Station Shuttle Rotomolding Machines

Salient Features:

Choose it for high volume production (beyond 15000L/4000USG)
Equipped with machine controls and necessary interlocking
Equipped with safety devices and indicators and alarms
Microprocessor based machine control panel with display
Optional PLC for complete automation
Environment friendly burners suitable for LPG/CNG/Duel Fuels
Optionally design heating chamber for energy efficient heat transfer to the moulds for fast and short cycle time
Special insulation material for better working environment.
Straight arm with four mould individual carrier for uniform thickness.
Inbuilt mould positioning and balancing facility
Facility to add Extra station for higher production

Technical Specification

Particular

Unit

ASST-2000

ASST-3000

ASST-5000

ASST-7500

ASST- 10000

ASST - 15000

Oven chamber size	Mtr	3.2 x 2.5 x3.2	3.4x 2.7 x 3.4	3.6 x 2.8 x 3.6	4.1 x 3.6 x 4.1	4.7 x 4 x 4.7	5.2 x 4.1 x 5.2
Fuel		Diesel / Gas	Diesel / Gas	Diesel / Gas	Diesel / Gas	Diesel / Gas	Diesel / Gas
Swing Dia Strgt Arm	Mm	2900/475/2100	3200/475/ 2200	3400/475/ 2700	3800/475/3200	4400/475/3700	4800/4753850
Swing Dia Offset Arm.		1750/400/1600	1900/400/1700	2000/400/2100	2900/400/2900	3600/400/3200	4100/410/3200
Elect Load	HP	24	28	41.50	69	83	95
Floor spare in LxWxH	Mtr	12x 10x 4	14 x 10 x 4.5	15 x 14 x 5	18 x 16 x 6	20 x 16 x 6	26 x 18 x 6.5
