ASH WIN ENGINEERS, having made its modest beginning in 1992 at Ahmedabad, India. Which is now undisputed player in manufacturing and export of State of the art full range of Rotomolding machines, Microfine Pulvering system, Compounding Extrusion Lines, Highspeed Mixers, Scrap Granulators, Vibratory Screens, Rotational Moulds of Mild steel/ Stainless steel and also other related Plastics auxiliary equipments. The promoters are visionary engineers who are possessing strong technical as well as management back ground with focus in manufacturing of Plastic Rotational Molding Plants and Extrusion processing plants.

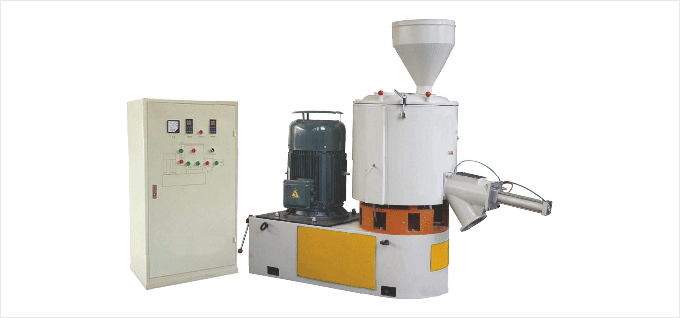

High Speed Mixer

ASH WIN MAKE High speed compounding mixer is suitable for homogenized ad uniform mixing of polymers with other ingredients to prepare a good quality ready formulation which is used for further process.

Salient Features:

Robust construction, compact & convenient design.
Mixing vessel outer jacket is made from 6 mm thick mild steel plate &inner from 5 mm thick S.S plate.
Mechanical shaft seal & gasket is provided to prevent material leakage.
Temperature sensor& indicator for precise measuring of material temperature.
Faster mixing with excellent homogenization.
Powder coated Electrical panel with dust proof construction equipped with Ammeter, Voltmeter, and Temperature Indicator with thermocouple, starter & other necessary electrical equipments.
All switch gears & inputs of reputed & reliable make.

Technical Specification

Particular

Unit

Models

-	-	ASM-75	ASM-150	ASM-200	ASM-300
Motor capacity	kw	7.5	11.65	18.25	22.50
Batch Mixing capacity	kgs	15	30	40	60
Approx production per hour	Kgs/hr	60-75	125-150	175-200	275-300
Approx weight	kgs	350	600	700	900
