ASH WIN ENGINEERS, having made its modest beginning in 1992 at Ahmedabad, India. Which is now undisputed player in manufacturing and export of State of the art full range of Rotomolding machines, Microfine Pulvering system, Compounding Extrusion Lines, Highspeed Mixers, Scrap Granulators, Vibratory Screens, Rotational Moulds of Mild steel/ Stainless steel and also other related Plastics auxiliary equipments. The promoters are visionary engineers who are possessing strong technical as well as management back ground with focus in manufacturing of Plastic Rotational Molding Plants and Extrusion processing plants.
Agglomerator
"Total Commitment to Customer Satisfaction"

Agglomerator

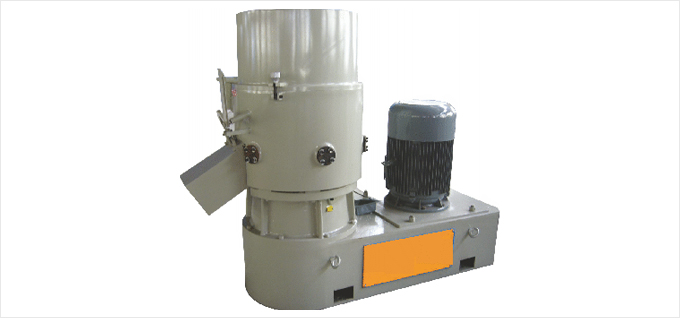

Ash win make ASAG series Agglomerator are designed for processing plastic waste for reclamation and recycling, LDPE, HDPE, PP, LLDPE, BOPP, HM, Polyester, Nylon, PVC etc. trim scraps, balled or loose film, synthetic fiber and carpet. Agglomerator is ideal to convert plastic waste films for easy feeding into Extruder.

Description of Operation

The Agglomerator operates in "batches" and the processing chamber is loaded before and during the process. The high-energy-blades shred the plastics loaded material and press it under the rotor due to its design. The friction heats being generated during the operation . which heats up the plastics material up to the processing temperature. At this temperature the material becomes highly viscous. Subsequently cold water is injected into the process which causes the material to densify.

This Agglomerator are also well known with other terminology names like Film compactor, Film densifier, Film washer, Turbo washer.

Technical Specification

MODEL Unit ASAG-75 ASAG-100 ASAG-200 ASAG-300 ASAG-400
MAIN MOTOR HP 20 25 40 60 75
BATCH CAPACITY KGS 6-8 8-10 16-20 25-30 30- 35
OUTPUT KGS/HR 60 -80 80-100 150-200 200-300 300-400
APPLICATION - LD/ HM/ LLD/ PP/ TAPE/ PVC LD/ HM/ LLD/ PP/ TAPE/ PVC LD/ HM/ LLD/ PP/ TAPE/ PVC LD/ HM/ LLD/ PP/ TAPE/ PVC LD/ HM/ LLD/ PP/ TAPE/ PVC
APPROX WEIGHT KGS 1000 1200 1800 2500 2800
DIMENSIONS Mtr 1.70 x 0.75 x 1.50 1.70 x 0.85 x 1.50 2 2 x 0.85 x 1.60 2.30 x 1 x 1.75 2.30 x 1.1 x 1.80
