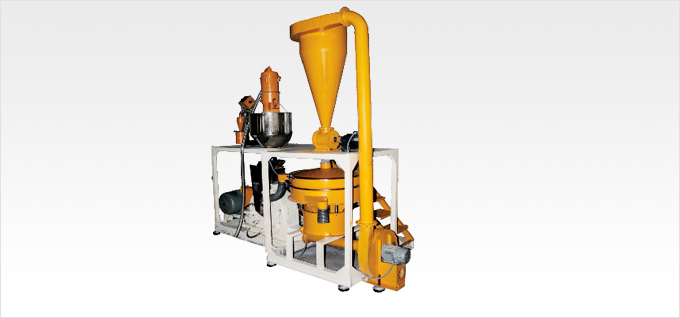

Microfine Pulverising System

Salient Features:



  • Complete Robust & very sturdy structure for sound & vibration free operation.
  • Magnetic type vibrating feeder for uniform & controlled feeding of material.
  • Main Grinding disc of superior grade material for longer life.
  • Very effective water cooling system for Blade, Mill body and Bearing housing.
  • Temperature monitoring of Disc Mill & thereby ease of control on feed rate.
  • Vibratory screen for fine re- pulverizing of course materials.
  • Powder coated Electrical panel with dust proof construction equipped with all safety features & controls.
  • All components & bought outs parts are of reputed & reliable make.
  • Complete Design with flexibility & perform fine Pulverizing of wide range of plastics materials like PE, RPVC, ABS, PC and other heat sensitive materials.

Applications

For fine Pulverising of LLDPE, LDPE, RPVC, ABS, PC and other heat sensitive polymers.

Technical Specification

Specification Unit AEPV-350 AEPV-400 AEPV-450 AEPV-550
Max. Output In LLD (Virgin 20 Mesh) Kgs/Hr 60-70 80-100 120-140 160-200
Maxi. Output in RPVC ( 18 mesh ) Kgs/ hr 80 -150 150-200 250- 300 350-400
Total Load KW 17.25 25.50 33.75 50.90
Floor Space , L X W X H MTR 2.3 x1.6 x 3 2.5 x 1.6 x 3.5 2.5x 1.6x3.5 3x 2.5 x4.5

Optional Features: : Vacuum Hopper Loader PLC Controlled Operation Electronics Soft Starter for Main Mill
