Bi Axial Machines
"Total Commitment to Customer Satisfaction"

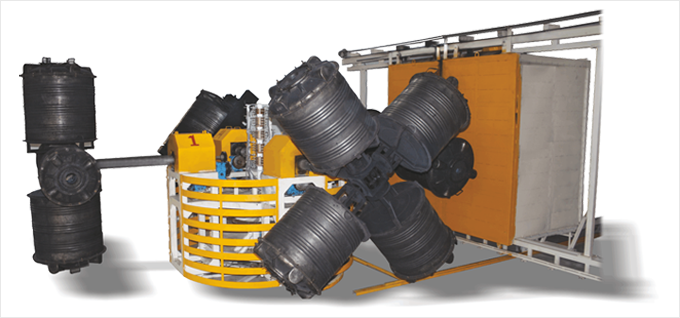

Independent Four Arm Bi Axial Machines

Salient Features

  • OVEN CHAMBER: Oven panel has been from Insulated from 1.5 mm thick CRCA sheet, sandwiched type by using car wool and wire mesh.
  • Oven doors operated electrically through Geared motor and rack and pinion drive.
  • Imported Italian make reliable Auto Ignition type Burner suitable for Gas/ Kerosene/ diesel.
  • Chamber is equipped with high velocity re- circulation blowers for fast heat transfer. Hexagonal shaped chamber gives air guidance and economical energy consumption.
  • Most efficient in Fuel & energy consumption compared to other types of machines.
  • Very consistent product quality due to smooth Bi-axial rotation,
  • Uniform heating of the mould with forced air circulation in heating chamber. At the base Indexing motor provides controlled indexing of motion for arms without jerks. .
  • Uniform distribution of material hence possible to produce tank with lesser weight.
  • Best compatibility in market due to lowest production cost per tank.
  • Lowest rejection rate due to sound & proven technology
  • Flexibility to produce double & triple layer tanks due uniform distribution of material.
  • AC variable drives of reputed make for all Minor & major axis's for minute & accurate speed control
  • Powder coated electrical control panel with dust proof construction & with all switch gears of either imported / highly reliable.
  • Control panel with dust proof construction. Complete with variable speed AC drives capable of smoothly adjusting the speed of AC motors in either direction and having all necessary self diagnostic features Indication and annunciation system for ease of operation.
  • AC drives have in built protection features against over load, short circuit, over voltage, for safety of AC motors.

Particular Unit AEBI -ID-3000 AEBI -ID-5000 AEBI -ID-7500 AEBI -ID-10000
Oven chamber size Mtr 3.5x 2.8 x 3.5 3.7 x 2.9 x 3.7 4.2 x 3.6 x 4.2 4.8 x 4 x 4.8
Fuel Diesel / Gas Diesel / Gas Diesel / Gas Diesel / Gas
Swing Dia Straight Arm Mm 3200/475/2200 3400/475/2700 3800/475/3200 4400/475/3700
Swing Dia Offset Arm. Mm 1900/400/1700 2000/400/2100 2000/400/2100 2900/400/2900
Elect Load HP 36 51.50 65 86
Floor spare in LxWxH Mtr 20 x 14 x 5 22 x 15 x 5 25 x 17 x 6 27 x 18 x 6
