ASH WIN ENGINEERS, having made its modest beginning in 1992 at Ahmedabad, India. Which is now undisputed player in manufacturing and export of State of the art full range of Rotomolding machines, Microfine Pulvering system, Compounding Extrusion Lines, Highspeed Mixers, Scrap Granulators, Vibratory Screens, Rotational Moulds of Mild steel/ Stainless steel and also other related Plastics auxiliary equipments. The promoters are visionary engineers who are possessing strong technical as well as management back ground with focus in manufacturing of Plastic Rotational Molding Plants and Extrusion processing plants.
Fixed turret Bi axial
"Total Commitment to Customer Satisfaction"

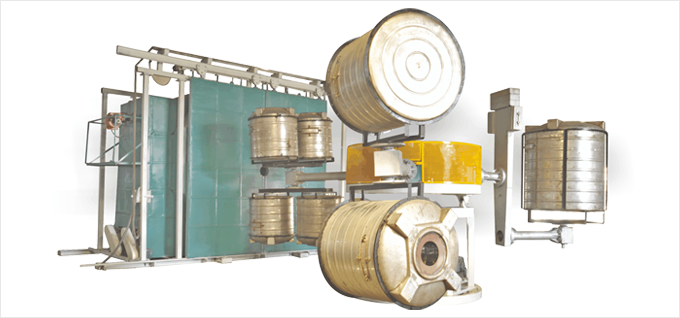

Fixed Turret 4/3 arm Bi axial machines.

Optional : PLC with microprocessor based control.

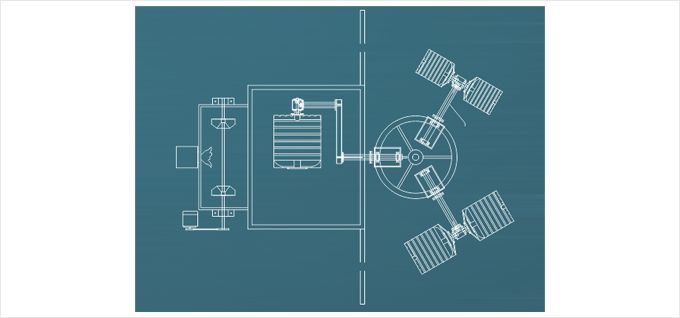

Layout Diagram

Technical Specification

Particular Unit AEBI - 2000 AEBI - 3000 AEBI - 5000 AEBI - 7500 AEBI- 10000 AEBI - 15000 AEBI - 20000
Oven chamber size Mtr 3.2 x 2.5 x 3.2 3.4x 2.7 x 3.4 3.6 x 2.8 x 3.6 4.1 x 3.6 x 4.1 4.7 x 4 x 4.7 5.2 x 4.1 x 5.2 6 x 4.1 x 6
Fuel Diesel / Gas Diesel / Gas Diesel / Gas Diesel / Gas Diesel / Gas Diesel / Gas Diesel / Gas
Swing Dia Straight Arm Mm 2900/475/2100 3200/475/2200 3400/475/2700 3800/475/3200 4400/475/3700 4800/475/3850 5800/560/3900
Swing Dia Offset Arm. 1750/400/1600 1900/400/1700 2000/400/2100 2200/400/2600 2900/400/2900 3600/400/3200 3600/400/3200
Elect Load HP 24 28 41.50 49 69 83 95
Floor spare in LxWxH Mtr 12x 10x 4 14 x 10 x 4.5 15 x 14 x 5 17 x 14 x 5 18 x 16 x 6 20 x 16 x 6 26 x 18 x 6.5
